Thermostat wiring intimidates a lot of homeowners, and honestly, that's fair. Wire colors vary, terminal labels look like alphabet soup, and system types (conventional, heat pump, dual-fuel) all wire differently.
This guide breaks down what each wire does, walks through the wiring process step by step, flags the variables that change your setup, and covers the mistakes that trip up even careful DIYers. We'll also tell you when it's time to call a licensed electrician like Tri-County Electric Service.
Key Takeaways
- Wires are identified by terminal letter (R, C, W, Y, G, O/B)—not by color alone
- Killing power at the breaker and labeling wires before disconnecting are non-negotiable safety steps
- Most errors trace back to O/B confusion, missing C-wires, or misreading heat pump vs. conventional setups
- Unusual wiring, heat pumps, or dual-fuel systems call for professional help before you touch a wire

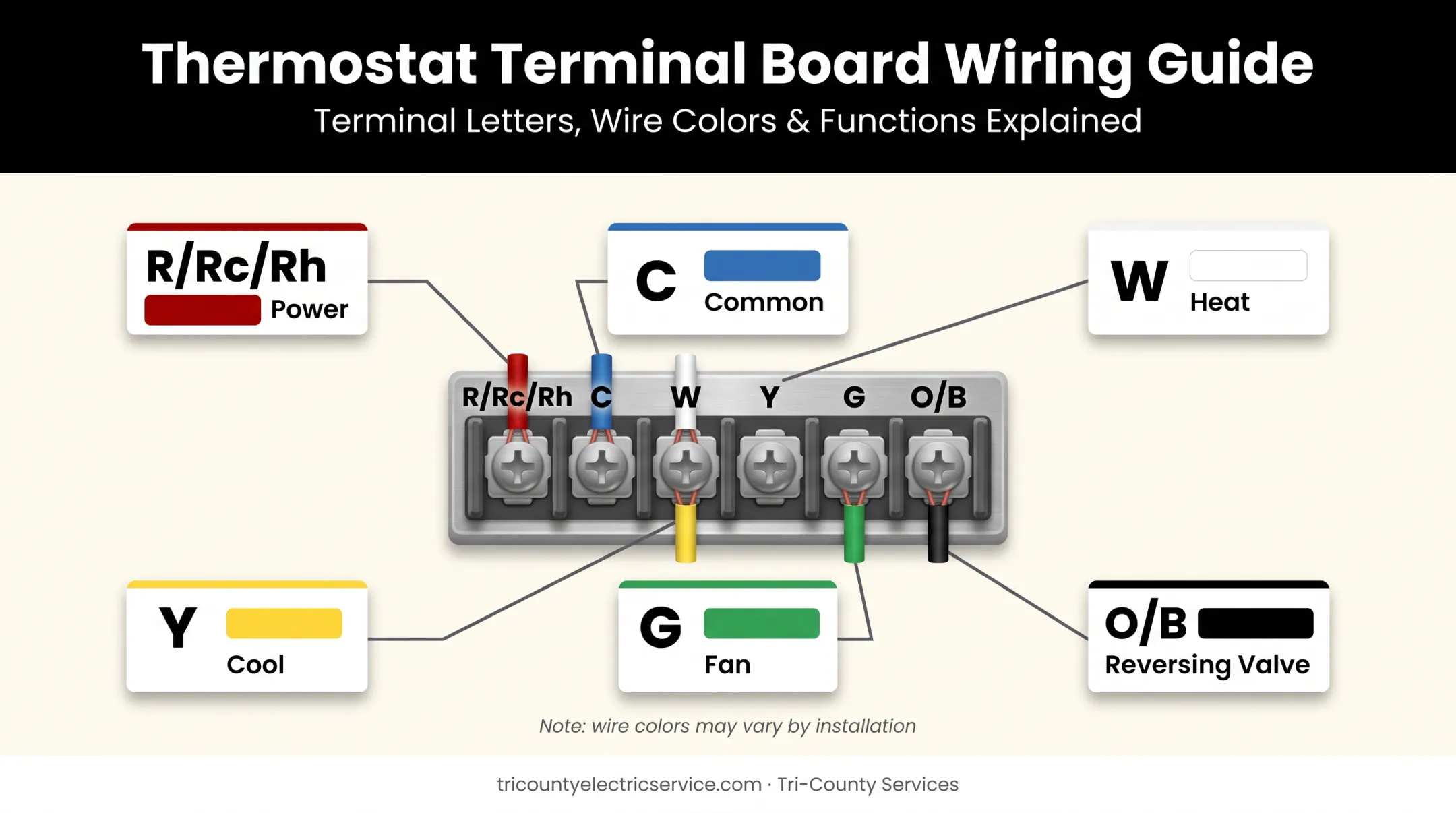

Understanding Thermostat Wire Colors and Terminals
Color coding is a convention, not a rule. Honeywell's thermostat wiring guidance states there is no industry standard that ties a specific color to a specific function. Always identify wires by the terminal letter, not the insulation color.
A previous installer may have used whatever wire was on hand. Use the common pairings below as a starting point, then match each conductor to the letter on the control board or old thermostat.
R Wire (Red) – Power
Supplies 24VAC from the transformer. Some systems split this into Rc (cooling transformer) and Rh (heating transformer) when there are two separate transformers instead of one shared unit.
C Wire (Blue/Black) – Common
Provides constant power. This is the wire smart and Wi-Fi thermostats need to keep their displays and Wi-Fi radios running. No C-wire? A C-wire adapter or power extender kit can often solve it, though compatibility varies by system.
W Wire (White) – Heat
Signals the furnace or air handler to fire up heating.
Y Wire (Yellow) – Cooling
Activates the compressor for air conditioning.
G Wire (Green) – Fan
Controls the blower fan independently, so you can run just the fan without heating or cooling.
O/B Wire (Orange/Blue) – Heat Pump Reversing Valve
This terminal causes the most callbacks. On many heat pump systems, O is energized in cooling and B is energized in heating (a convention noted in Carrier terminal documentation). Reverse them and the system can heat when it should cool, or the opposite. Confirm your equipment's O/B convention before you land the wire.
How to Wire a Thermostat: Step-by-Step

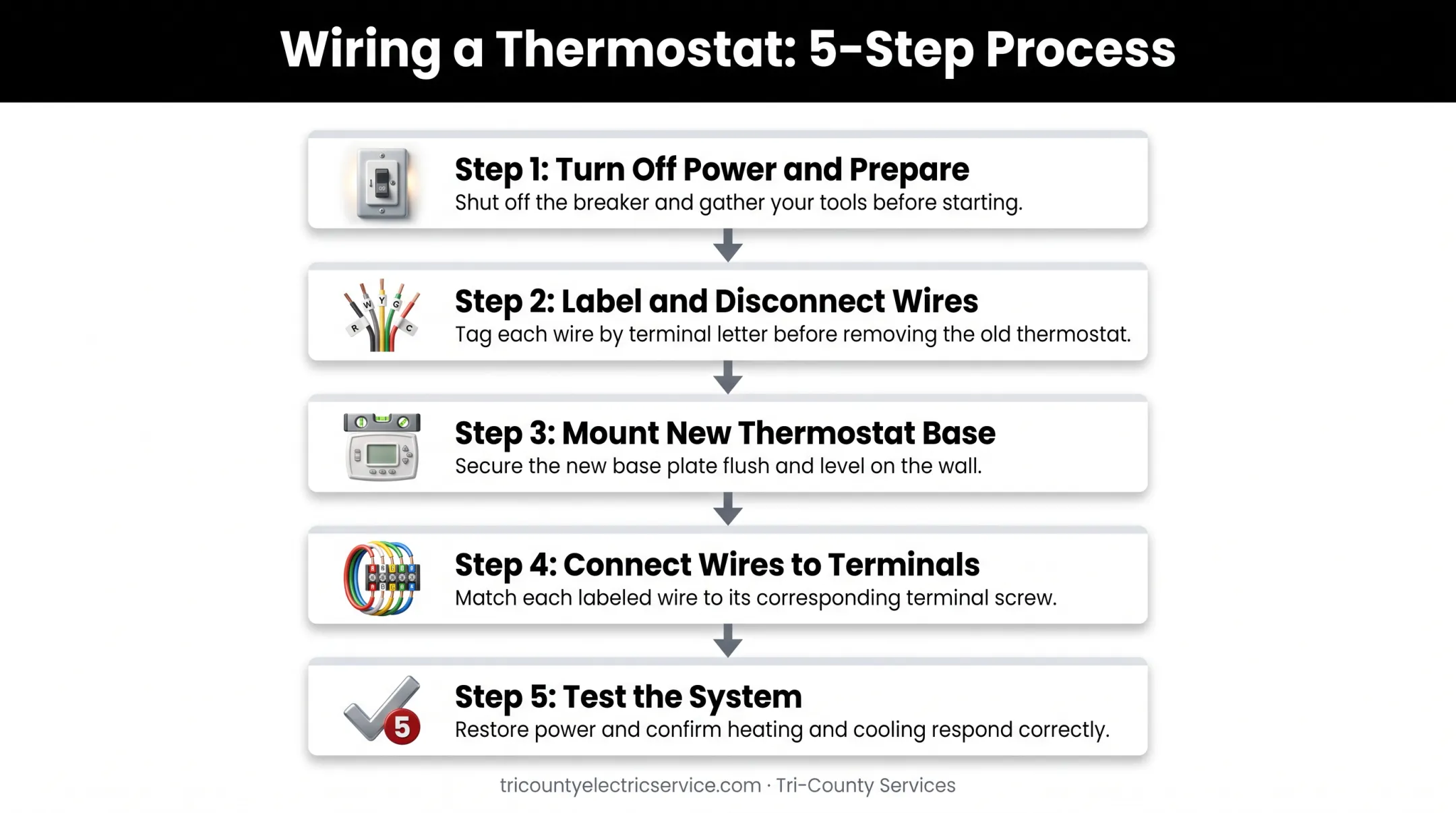

Step 1: Turn Off Power and Prepare
Flip the breaker controlling your HVAC system. Then confirm it's actually off: raise or lower the old thermostat's setpoint to trigger a heat or cool call. No response after a few minutes means power is off.
Remove the old cover and snap a clear photo of the existing wiring before you touch anything.
Step 2: Label and Disconnect Wires
Label each wire with its terminal letter using tape, cross-referencing your photo. If there's an unused wire capped off inside the wall, leave it alone. Don't force it onto a terminal just because it's there.
Step 3: Mount the New Thermostat Base
Use a level to mount the wall plate. Feed the wires through the back carefully so none slip back into the wall cavity. Fishing a wire out of drywall is nobody's idea of a good afternoon.
Step 4: Connect Wires to Correct Terminals
Match each labeled wire to its terminal per the new thermostat's manual:
- R/Rc/Rh: power connections first
- C: common, if present
- W: heat
- Y: cooling
- G: fan
- O/B: heat pump reversing valve, if applicable
If you only have one red wire but the new thermostat has both R and Rc terminals, keep the factory jumper in place between them. Two separate red wires mean the jumper gets removed.
Step 5: Test the System
Restore power at the breaker. Test heat, cool, and fan individually. Don't just check that something runs; confirm the right mode responds each time. If the wiring or system behavior doesn't match the manual, stop and call a licensed electrician.
Key Variables That Affect Your Wiring Setup
Your system type and thermostat model determine how complicated this gets.
- HVAC System Type: Conventional furnace/AC setups need fewer wires than heat pump or dual-fuel systems
- Number of Wire Conductors: 18/5 cable covers basic setups; heat pumps, smart thermostats, and multi-stage equipment need 18/6 or 18/7
- Presence of a C-Wire: Smart and Wi-Fi thermostats need one to run reliably without an adapter
- Single-Stage vs. Multi-Stage Equipment: Multi-stage systems add W2/Y2 terminals for a second heating or cooling stage
Skip any one of these checks and you’ll hit the gap mid-installation.

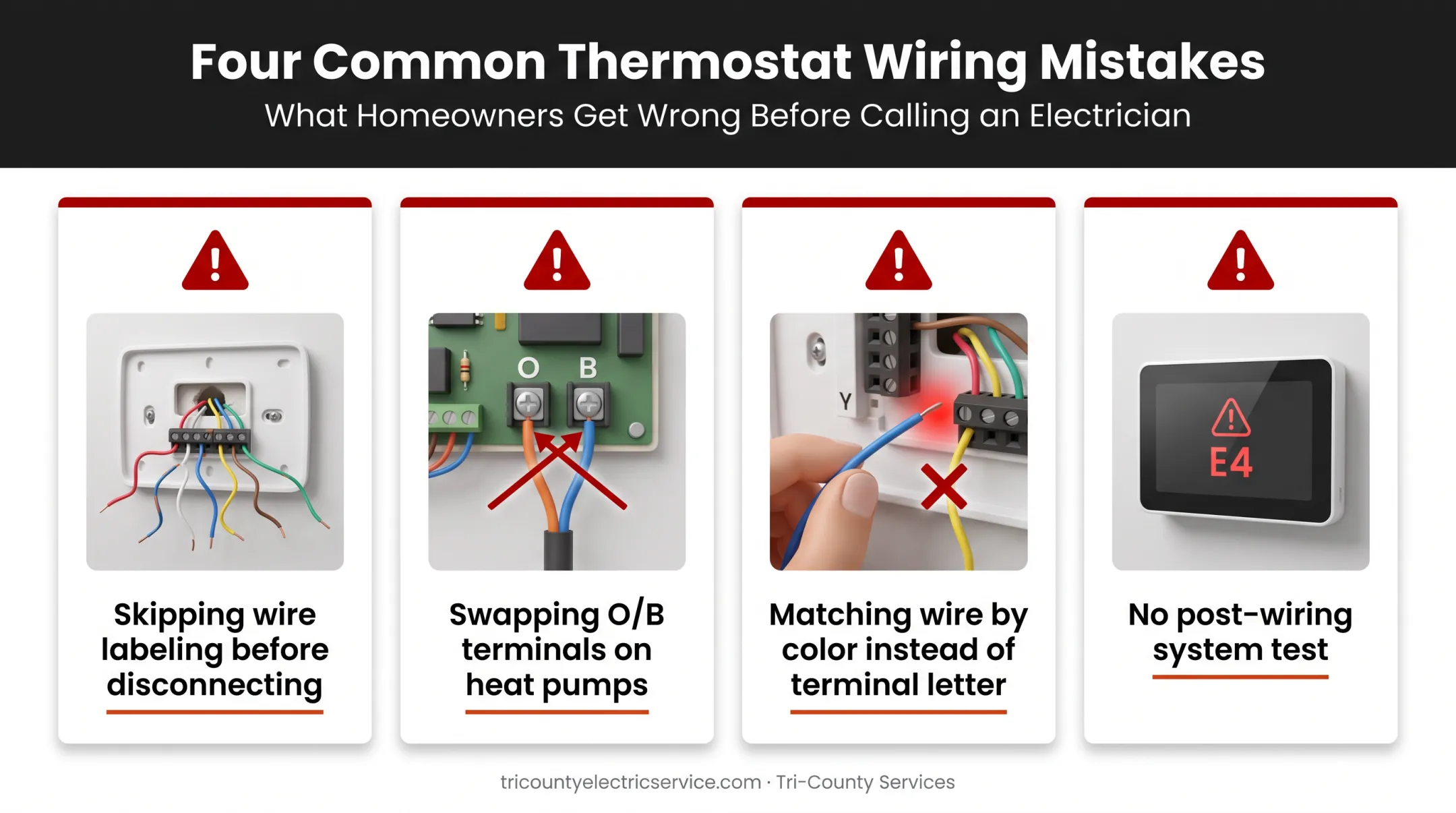

Common Mistakes When Wiring a Thermostat
- Skip labeling wires before you disconnect, and reconnection turns into pure guesswork
- O and B terminals get swapped on heat pump systems, so the unit heats on a cool call (or the reverse)
- Wire color is treated as function instead of matching each conductor to the terminal designations in the manual
- No post-wiring test means a miswire can sit unnoticed until the next heating or cooling season
Improper wiring can cause unintended operation and, in some cases, damage the thermostat or system components. Double-check every connection before you close the wall plate—and call a licensed electrician if the control board or jumper setup is unclear.
When to Call a Licensed Electrician
Basic thermostat swaps on a conventional system are reasonably DIY-friendly for a capable homeowner. Heat pump, dual-fuel, and multi-stage systems are a different story. O/B logic, backup heat staging, and dual-transformer setups carry a much higher risk of expensive missteps.
A few other reasons to pause:
- Manufacturer warranties on some HVAC equipment may require professional installation to stay valid
- Terminals that don't match any diagram you can find
- Wiring that looks spliced, modified, or inconsistent with standard conventions
If your thermostat wiring doesn't match the diagram in front of you, bring in someone who does this work daily rather than risk the HVAC control board.
Tri-County Electric Service has served Northeast Ohio homeowners since 1975 with fully licensed electricians for residential wiring. Schedule a residential service call online or call (440) 583-6895.
Frequently Asked Questions
What are the 5 thermostat wires?
The standard 5-wire setup includes R (power), C (common), W (heat), Y (cooling), and G (fan). This covers most conventional furnace and AC combinations, though your system may have anywhere from two to ten wires.
Should I use the R or Rc wire on my thermostat?
Both carry 24VAC power. Rc handles cooling in dual-transformer systems while R or Rh handles heating. If you only have one red wire, a jumper between R and Rc keeps both functions powered.
What happens if I wire a thermostat incorrectly?
Miswiring can cause unintended operation, such as the system running continuously or heating and cooling functions triggering incorrectly. In some cases, it can damage the thermostat or HVAC control components.
Do I need a C-wire for my new thermostat?
Most smart and Wi-Fi thermostats need constant power to run their displays and connectivity, which the C-wire provides. If yours doesn't have one, an adapter or power extender kit may work, depending on your system.
Can I wire a thermostat myself, or should I hire a professional?
Simple conventional-system replacements are generally DIY-friendly. Heat pumps, dual-fuel setups, or wiring you don't recognize are better left to a licensed electrician.
Why don't my wire colors match the standard color code?
Older installations or past splices often don't follow modern color conventions. Always trace wires to their terminal function rather than trusting color alone.
