Many homeowners confuse a failing main breaker with a routine circuit trip. That mix-up leads to wrong fixes, wasted time, and sometimes worse damage. This guide breaks down the warning signs, the real safety risks, and the professional process, plus why Tri-County Electric Service recommends leaving this job to licensed electricians.
Key Takeaways
- The main breaker controls power to your entire panel, not just one circuit
- Frequent tripping, burning smells, or a warm panel signal a failing main breaker
- Line-side wires stay energized even when the main breaker is switched off
- Utility coordination and a permit/inspection are typically required
- Tri-County Electric Service's licensed electricians handle this work safely across Northeast Ohio
What Is a Main Breaker and Why Does It Matter?
A main breaker is the primary switch controlling all power entering your electrical panel. According to Eaton, it connects incoming utility supply cables to the panel and provides both overcurrent protection and a single disconnect point for every circuit in the home.
Some panels skip the main breaker entirely. These "main lug only" (MLO) load centers have incoming wires connected straight to the bus bar with no single shutoff, and they're typically installed as subpanels downstream from a main panel.
Typical amperage ratings run from 100A to 200A for most homes, with some panels rated up to 400A. The National Electrical Code's Table 240.6(A) lists these as standard breaker sizes, though your actual service size depends on a proper load calculation, not just what's common.

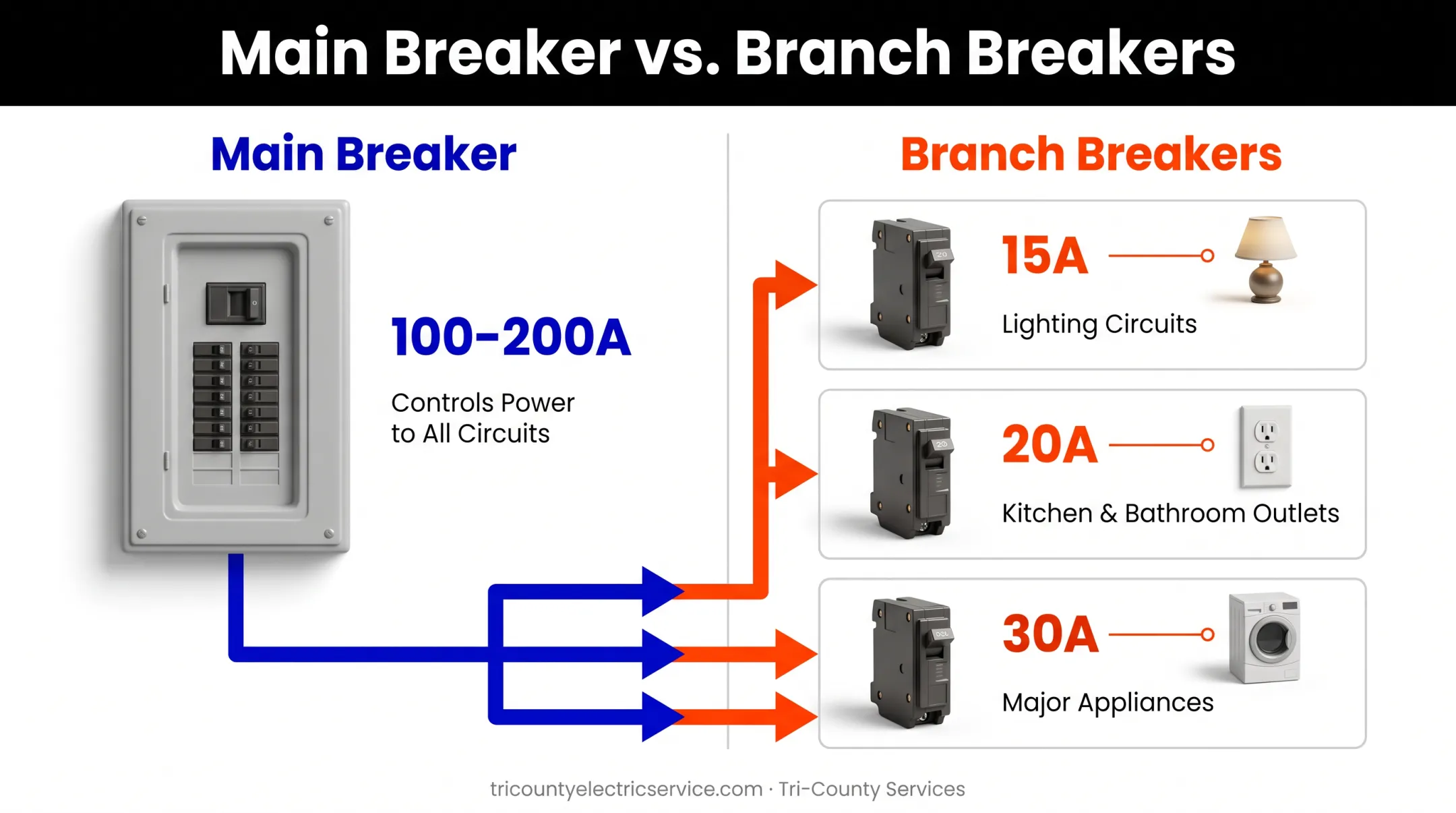

Main Breaker vs. Regular Breakers
Knowing which one failed determines whether you restore a single circuit or shut down and replace service-level equipment:
- Main breaker: Controls power to the whole panel, rated for the full service amperage (100-200A typical)
- Branch breakers: Protect individual circuits (15A, 20A, 30A, etc.) and only shut off one area of the home
If your main breaker fails, everything downstream loses power. If one branch breaker trips, only that circuit goes dark.

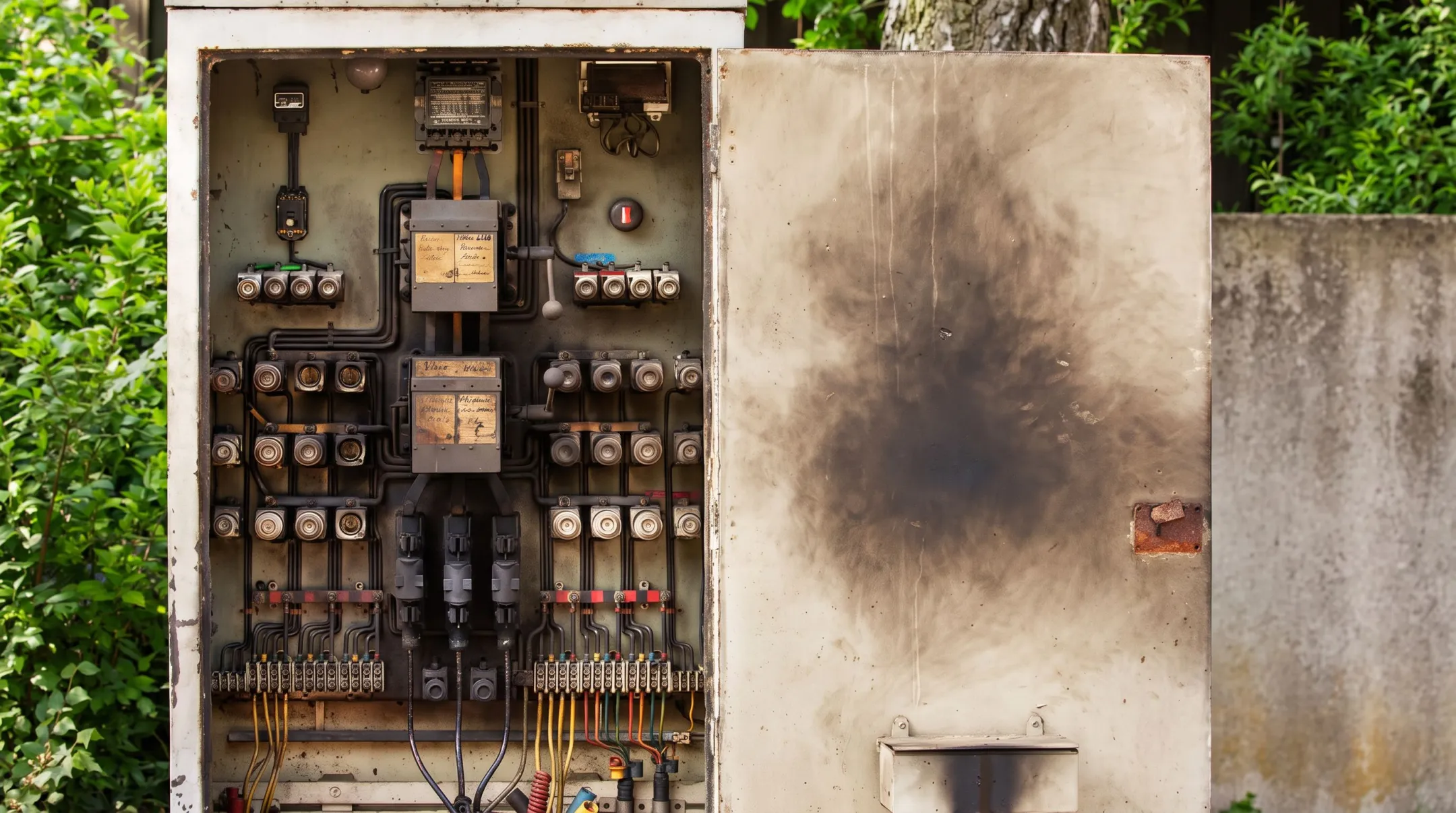

Signs Your Main Breaker Needs Replacing
Watch for these red flags:
- Frequent, unexplained tripping with no obvious branch circuit cause
- Visible damage like cracks, burn marks, corrosion, or a burning smell near the panel
- Flickering lights or inconsistent power, especially when larger appliances run
- A panel that feels warm to the touch
- Aging or legacy panels, especially units 20–30+ years old or brands like FPE (Federal Pacific Electric) or Zinsco
InterNACHI flags FPE and Zinsco panels for evaluation by a qualified electrician, citing known issues with breaker calibration and connection reliability. The CPSC investigated FPE breakers in 1983 and found testing failures, though it stopped short of declaring them universally unsafe. If you have one of these legacy panels, get it inspected.
Planning to add an EV charger, a whole-home generator, or more appliances than your panel was built for? A capacity upgrade—for example, moving from 100-amp to 200-amp service—often means replacing the main breaker too.
Why Main Breaker Replacement Is Different From Standard Breaker Swaps
Here's the part most DIY guides gloss over: the main breaker sits right where utility power enters your home. That means the line side often stays live even when the breaker is flipped off.
InterNACHI is direct about this: main terminals remain energized whenever utility service is connected, regardless of the breaker's switch position. Turning off the main handle does not make the panel safe to touch.
Because of this, main breaker work usually requires:
- Utility coordination: many utilities require a disconnect/reconnect order before work begins
- Permit and inspection: most jurisdictions treat this as service equipment work, not a minor repair
- Licensed electrician: several states and local codes restrict this work to qualified professionals
The risk of arc flash and serious injury is real given the amperage involved. This isn't comparable to swapping a 15-amp branch breaker.

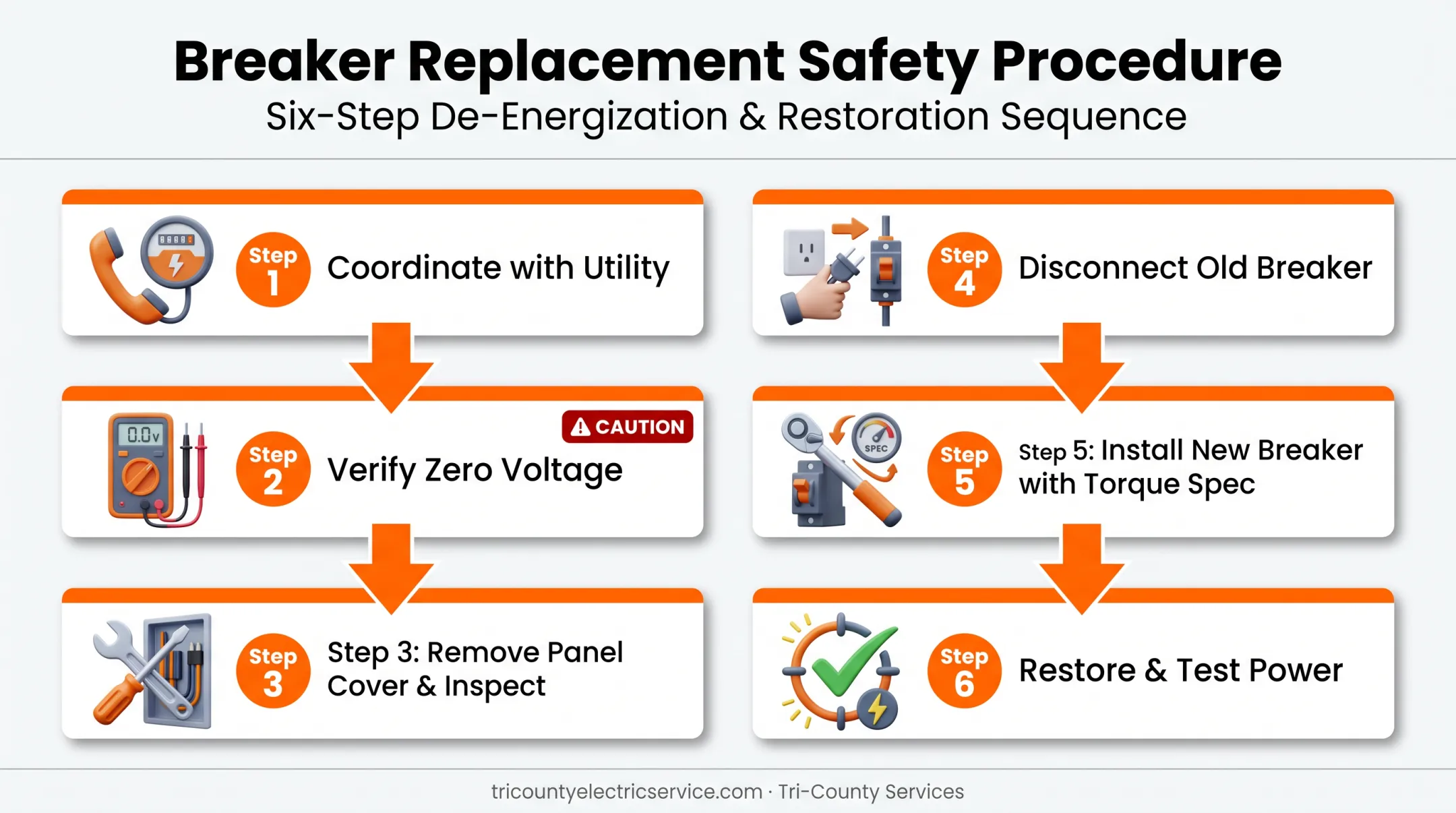

Step-by-Step Overview: How Professionals Replace a Main Breaker
Wondering what actually happens during a replacement? Here's the typical sequence a licensed electrician follows:
- Coordinate with the utility company to de-energize power at the meter, often requiring a scheduled disconnect
- Verify zero voltage using a properly rated multimeter or non-contact tester, never assuming the panel is dead
- Remove the panel cover and inspect the busbar for corrosion, pitting, or heat damage
- Disconnect the old main breaker, carefully noting wire positions before removal
- Install the new breaker, torqued to manufacturer specifications and matched for amperage and brand compatibility
- Restore power gradually and test the system for stable, correct operation
That torque step matters more than it sounds. NEC 110.14(D) requires terminal connections to be torqued to the exact values specified by the manufacturer, using a torque wrench, not a "tighten it until it feels right" approach. Under- or over-torqued connections are a common source of overheating down the line.

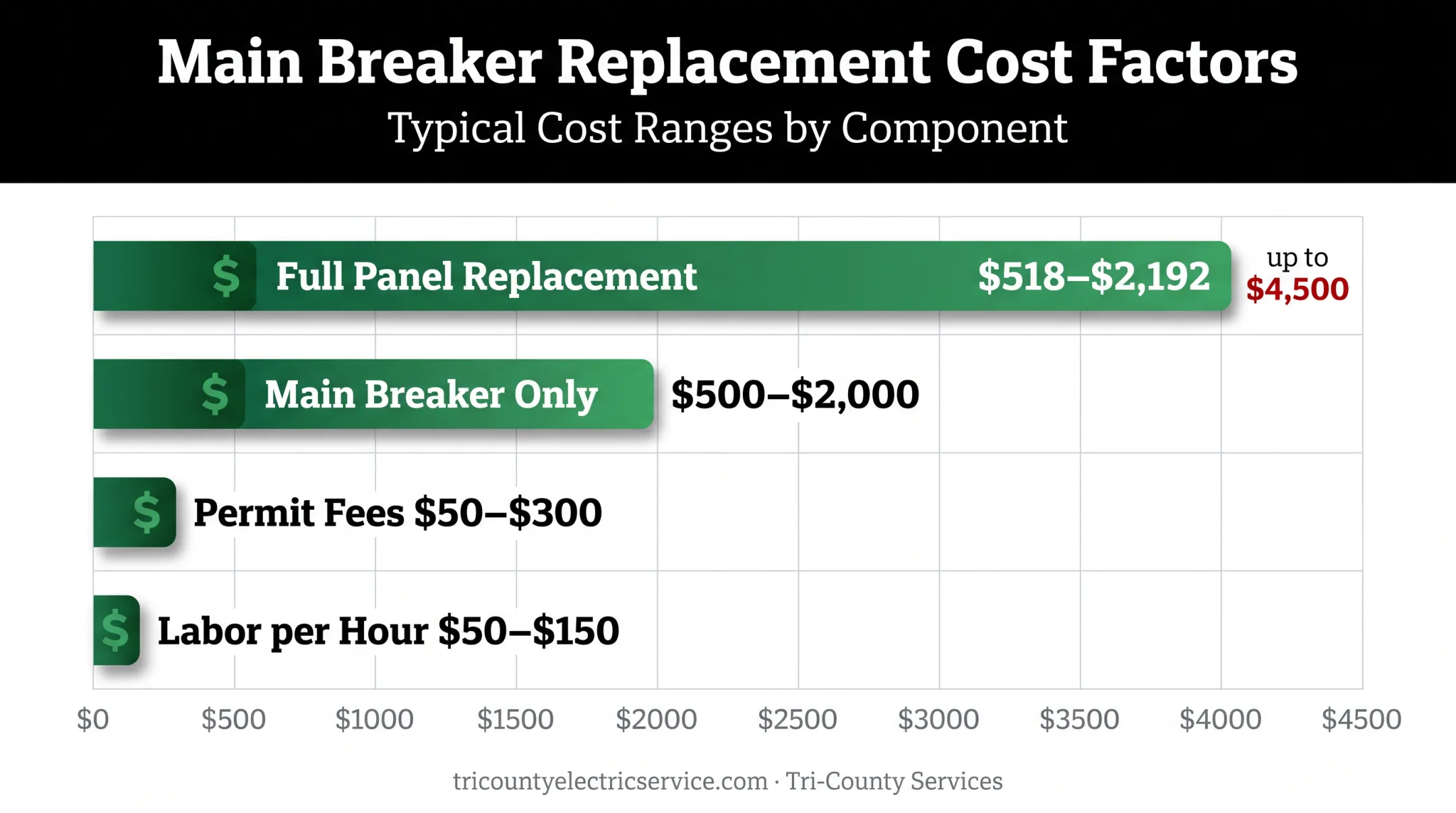

Cost Considerations for Main Breaker Replacement
Expect to pay more than you would for a standard branch breaker swap. Industry estimates put main-breaker-only replacement at $500–$2,000, according to Angi's 2026 cost data.
Full electrical panel replacement averages $518–$2,192, and can reach $4,500 when relocation or amperage expansion is involved.
What drives the price:
- Amperage upgrades (100A to 200A jumps cost more)
- Permit fees, typically $50–$300
- Panel condition and accessibility — older or hard-to-reach panels take longer
- Utility coordination — disconnect/reconnect scheduling can add time and cost
Labor alone often runs $50-$150 per hour, with straightforward jobs taking four to eight hours. Wiring upgrades can push that to 20-30 hours across multiple days.
A free on-site estimate prevents quote surprises. Tri-County Electric Service offers free estimates on service calls and replacements. A technician inspects the panel, wiring, and grounding in person before quoting the job, rather than guessing over the phone.
Why Hire a Licensed Electrician Instead of DIY
Beyond the safety risks already covered, many areas legally require a licensed electrician for main breaker and meter-related work.
Utilities like AEP Ohio and FirstEnergy specifically direct customers to contact a licensed electrical contractor before any service disconnect or panel change. The contractor manages the utility coordination process end to end.
DIY attempts here carry real consequences:
- Injury risk from live utility-side terminals
- Code violations that surface during resale inspections
- Failed inspections requiring costly rework
Family Handyman's electrical safety guidance is blunt on this point: hire a licensed electrician for panel work.
Tri-County Electric Service has handled electrical work across Northeast Ohio for nearly 50 years, since 1975. Licensed electricians offer same-day service for routine jobs and 24/7 emergency availability when a failing main breaker can't wait until Monday.
Frequently Asked Questions
How much does main breaker replacement cost?
Typical main breaker replacement runs $500–$2,000, more than a branch breaker swap because of utility coordination and labor. Get a free estimate tailored to your panel and home.
How do I tell if my main breaker is bad?
Watch for frequent unexplained tripping, burning smells, visible cracks or corrosion, and inconsistent power or flickering lights. A panel that feels warm to the touch is also a warning sign worth acting on quickly.
Are main breakers different from regular breakers?
Yes. The main breaker controls power to the entire panel at a higher amperage rating, while branch breakers only protect individual circuits like a bedroom outlet or kitchen appliance line.
Can I replace a main breaker myself?
Many jurisdictions require a licensed electrician because utility-side power can stay energized even with the breaker off, and local permit rules usually back that up.
How long does main breaker replacement take?
A straightforward replacement often takes four to eight hours. Utility coordination and inspection scheduling can stretch the full process to a day or longer, depending on local requirements.
Does replacing a main breaker require a permit?
Most areas require a permit and inspection for this type of work since it involves service equipment. Requirements vary by city and county, so confirm with your electrician before scheduling.
