Choosing the wrong type creates real problems. An undersized panel can't handle an EV charger or generator. An outdated fuse box lacks modern safety protections. And electrical distribution equipment factors into 47% of home electrical fires, according to NFPA's home electrical fire data.
This guide breaks down the main types of distribution boards, how they differ, and how to pick the right one for your property.
Key Takeaways
- Distribution boards divide utility power into breaker- or fuse-protected branch circuits
- Core options include main-breaker panels, sub-panels, and fuse boxes—built as single- or three-phase
- Replace fuse boxes and any panel over 20 years old for safety and capacity
- Match the board to load size, building type, and expansion plans such as EV chargers or generators
- Leave panel selection and installation to licensed electricians
What Is a Power Distribution Board?
A power distribution board is the point where incoming electrical supply gets divided into individual circuits. Think of it as the traffic control center for your electricity.

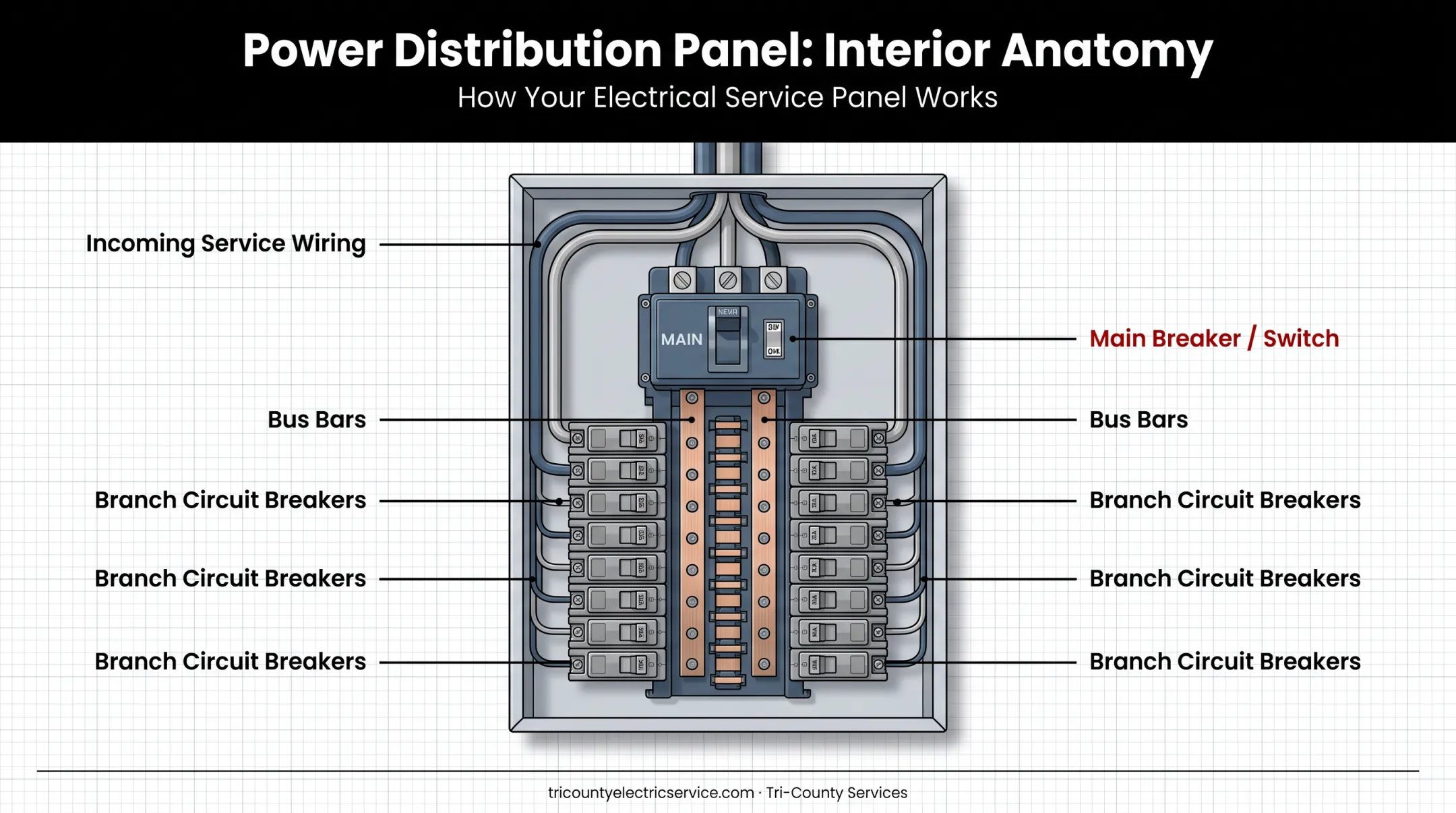

Inside, you'll find:
- Breakers or fuses that protect each individual circuit from overload
- A main switch or breaker that can cut power to the whole system at once
- Bus bars and wiring that route power to specific areas of the building
The National Electrical Code refers to this equipment as a "panelboard." According to Eaton's technical documentation, there's no functional difference between a panelboard and a load center for code purposes.
Smaller residential versions are commonly called load centers. Whatever the label, the board is what organizes branch circuits and gives you a single place to shut power off safely.
Why Is Choosing the Right Distribution Board Important?
The right board keeps power delivery safe and reliable. Get it wrong, and you're looking at overloaded circuits, constant breaker trips, or worse.
Common problems with a poor panel choice include:
- Insufficient capacity for modern loads like EV chargers, HVAC systems, or standby generators
- Outdated fuse technology that lacks AFCI/GFCI protection found in modern breakers
- No room for expansion when a homeowner wants to add circuits later
This matters most when you're planning a major upgrade. Homeowners adding an EV charger or generator often discover their existing panel simply can't support it.
Panel age itself is a red flag. Panels over 20 years old are strong candidates for evaluation, especially before adding high-powered equipment.
Frequent breaker trips, flickering lights, or burning odors near the panel are signs the existing board is already struggling. Address them promptly before a minor issue becomes a safety hazard.

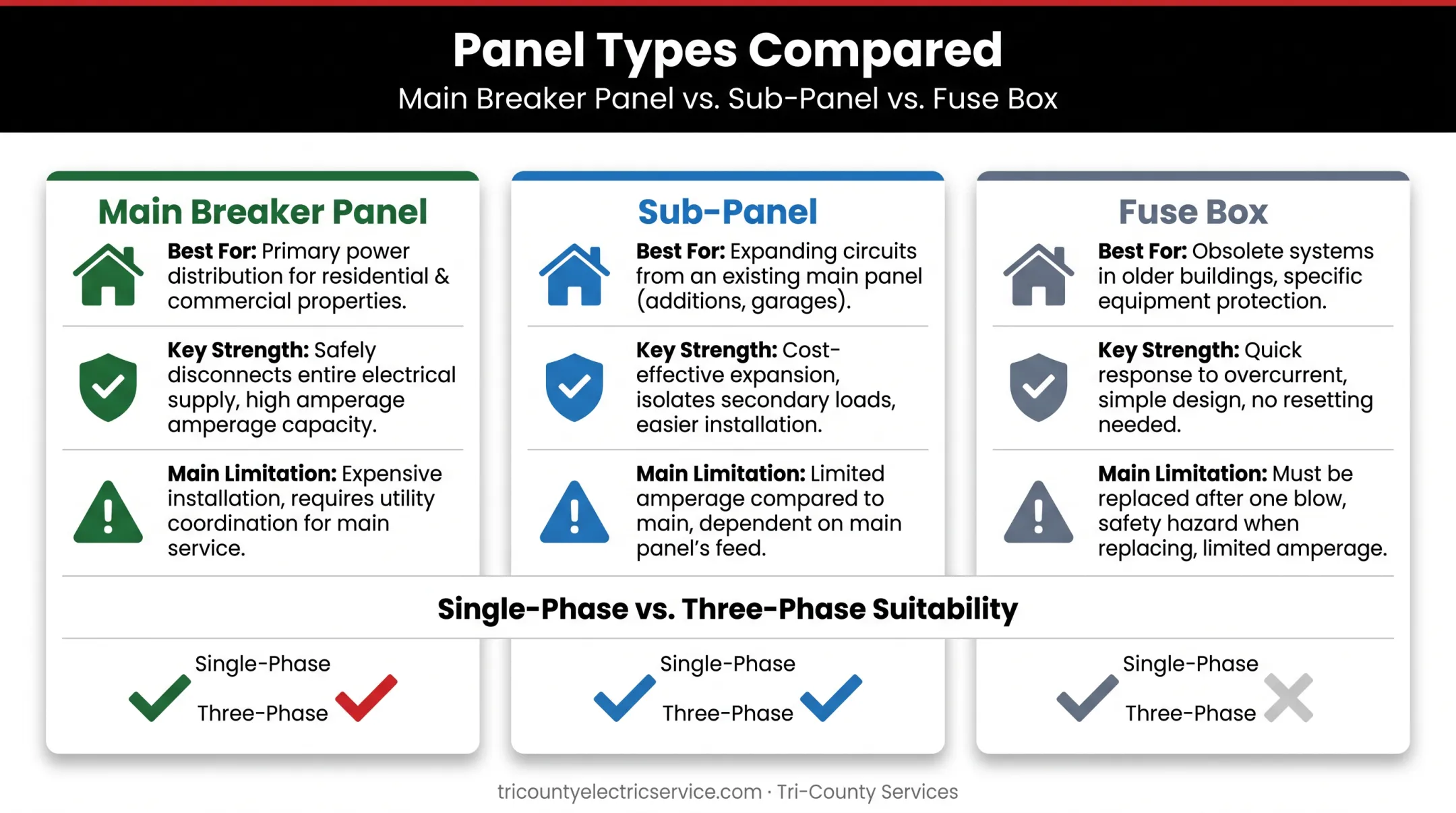

Types of Power Distribution Boards
Distribution boards vary by capacity, application, and underlying technology. Picking the wrong category, not just the wrong size, is where costly mistakes happen. These are the main types you'll encounter.
Main Breaker Panel
This is the primary panel in most homes and small businesses. It has an integral main breaker that controls all incoming power.
How it works: The main breaker acts as a single disconnect point for the entire electrical system, plus overcurrent protection for everything downstream.
- Best for: Standard homes and small businesses needing centralized control
- Strengths: Whole-system shutoff for safety, straightforward design, familiar to most electricians
- Limitations: Limited capacity can force an upgrade when adding major loads like EV chargers or generators
Sub-Panel (Main Lug Panel)
A sub-panel, or main lug panel (MLO), is a secondary board fed from the main panel. Unlike the main panel, it has no integral main breaker of its own.
According to Eaton's panelboard documentation, MLO panels are typically installed downstream of a main-breaker panel and are often called secondary or add-on panels. The upstream panel's breaker protects the feeder that supplies it.
- Best for: Additions, garages, workshops, or detached structures needing more circuits
- Strengths: Cost-effective way to add capacity without a full service upgrade
- Limitations: No independent shutoff; must be sized correctly to avoid overloading the main panel
Fuse Box
This older-style board uses replaceable fuses instead of resettable breakers. When a fuse blows, it has to be physically swapped out.
The Electrical Safety Foundation International (ESFI) warns that installing an oversized fuse, say a 30-amp fuse on a 20-amp circuit, is a serious fire hazard because it fails to interrupt the circuit at a safe threshold.
- Best for: Nothing, really, aside from older homes that haven't been updated. Not recommended for new installs.
- Strengths: Simple, low-cost original design (that's about it)
- Limitations: No AFCI/GFCI protection, limited capacity, corrosion risk over time
If your home still has a fuse box, an inspection and upgrade conversation with a licensed electrician is worth having sooner rather than later.
Beyond construction and protection style, boards are also grouped by the electrical service they support.
Single-Phase Distribution Board
Single-phase boards are built for standard household voltage and typical residential loads. Most US homes run on 120/240-volt, single-phase, 3-wire service.
- Best for: Residential homes and small businesses with standard appliance loads
- Strengths: Simple, affordable, easy to install and maintain
- Limitations: Not suitable for heavy machinery or large-scale commercial demands
Three-Phase Distribution Board
Three-phase boards distribute current across three separate phases, allowing for much higher, more stable power delivery. Eaton offers commercial three-phase load centers rated for configurations like 208Y/120 and 240 volts for light-commercial applications.
- Best for: Larger commercial buildings, facilities with heavy equipment, or properties running substantial backup generators
- Strengths: Higher capacity, more stable voltage, better suited to demanding equipment
- Limitations: Higher installation cost and complexity; typically unnecessary for standard homes
How to Choose the Right Type of Distribution Board
The right board depends on your current and future electrical needs, not just what's already bolted to the wall.
Factors to weigh:
- Current and projected load — Account for major additions like EV chargers or standby generators, not just what's plugged in today
- Building type and size — A single-family home has very different needs than a commercial facility
- Available panel space — Check whether there's room for future circuits, not just what fits now
- Local code requirements — Permitting rules vary and affect what's allowed
- Budget — Weigh upgrade cost against long-term safety and reliability
For EV chargers specifically, capacity planning matters. Tesla's Wall Connector can draw up to 11.5 kW (48 amps), and its installation guidance recommends matching the breaker to the vehicle's onboard charger capability. That's not a decision to make by guesswork.
Tri-County Electric Service's licensed electricians are certified installers for both Generac generators and Tesla EV chargers. They evaluate your existing panel and recommend the right upgrade path before any generator or charger installation begins.
What to Check Before Finalizing a Distribution Board
A few common mistakes show up when finalizing a panel choice:
- Oversizing unnecessarily: A panel far beyond current or realistic future needs adds cost without benefit
- Ignoring capacity limits: Underestimating load leads to tripped breakers or unsafe overloading later
- Overlooking future growth: Skipping plans for additions, EV charging, or generators often means a second upgrade soon after the first
- Choosing familiarity over safety: Keeping a fuse box or outdated panel out of habit is not a substitute for a code-compliant upgrade
Conclusion
Distribution boards organize and protect power delivery in homes and businesses. The right choice depends on your load—from single-phase residential panels to three-phase commercial boards.
Match the board to your electrical demand, then have a licensed electrician install or upgrade it so the system stays safe and code-compliant. Tri-County Services handles residential and commercial panel installation and service upgrades, with free estimates and upfront pricing when you’re ready to move forward.
Frequently Asked Questions
What does a power distribution board do?
It splits incoming electricity into individual, protected circuits for lights, outlets, and equipment, while allowing you to shut off power safely when needed.
What is the difference between an electrical panel and a distribution board?
They're the same component. "Distribution board" is common terminology internationally, while "electrical panel" or "breaker panel" is more typical in the US.
How do I know if my panel needs an upgrade?
Watch for frequent tripped breakers, an old fuse box, insufficient capacity for new appliances, or plans to add an EV charger or generator. Panels over 20 years old also deserve a closer look.
Can I add a generator to my existing distribution board?
Many panels can accommodate a generator with a proper transfer switch, but a certified installer should assess your panel's capacity first to confirm it can handle the added load safely.
How much does it cost to upgrade an electrical panel?
Costs vary widely based on panel type, amperage, and labor involved. The best way to get an accurate number is a free estimate from a licensed electrician who can evaluate your specific property.
Is it safe to install a distribution board myself?
No. Panel work carries serious shock and fire risk and should always be handled by a licensed, insured electrician who understands local code requirements.
