During remodels across Northeast Ohio, outlet placement and circuit sizing are common trip-ups at inspection time. A misplaced receptacle or the wrong amperage can send a project back to square one.
This guide breaks down what the National Electrical Code (NEC) actually requires: GFCI protection, circuit amperage, placement rules, and the so-called "2-6-12 rule" electricians use as a memory shortcut.
Key Takeaways
- GFCI protection is mandatory for bathroom receptacles under NEC 210.8(A)(1)
- At least one 20-amp dedicated circuit is required for bathroom receptacles per NEC 210.11(C)(3)
- Outlets must sit within 3 feet of the sink basin per NEC 210.52(D)
- Receptacles are banned inside tub/shower zones under NEC clearance rules
What Are the Electrical Code Requirements for Bathroom Outlets?
NEC Article 210 governs branch circuits and receptacle placement in dwelling units nationwide. It sets the core bathroom outlet rules most inspectors enforce.
Most Ohio and Kentucky jurisdictions adopt the NEC and add local amendments. Ohio's electrical rules, for instance, took effect under Ohio Administrative Code 4101:8-34-01 in April 2024. Kentucky operates under its own adoption schedule, and Louisville specifically shifted to the 2023 NEC for permits issued from January 2025 onward.
The takeaway: don't assume your city follows the newest NEC edition automatically. Always confirm with your local building department before starting work.
A few practical boundaries:
- These rules apply specifically to dwelling units — commercial bathrooms follow different (often stricter) standards
- Older homes often fall short of current GFCI and circuit rules
- Retrofitting during a remodel is often the moment these gaps surface
Does the Code Require GFCI Protection for Bathroom Outlets?
Yes. NEC 210.8(A)(1) requires ground-fault circuit interrupter (GFCI) protection for bathroom receptacles in dwelling units.
Why GFCI Matters in Wet Locations
A GFCI device monitors current flow and cuts power within milliseconds if it detects an imbalance. That imbalance is what happens when electricity finds an unintended path through water or a person's body.
According to the Electrical Safety Foundation International, electrocutions have dropped 81% since GFCIs were introduced, with consumer-product electrocutions falling 95%. The Consumer Product Safety Commission has also estimated that proper GFCI protection could prevent nearly half of current electrocution incidents.

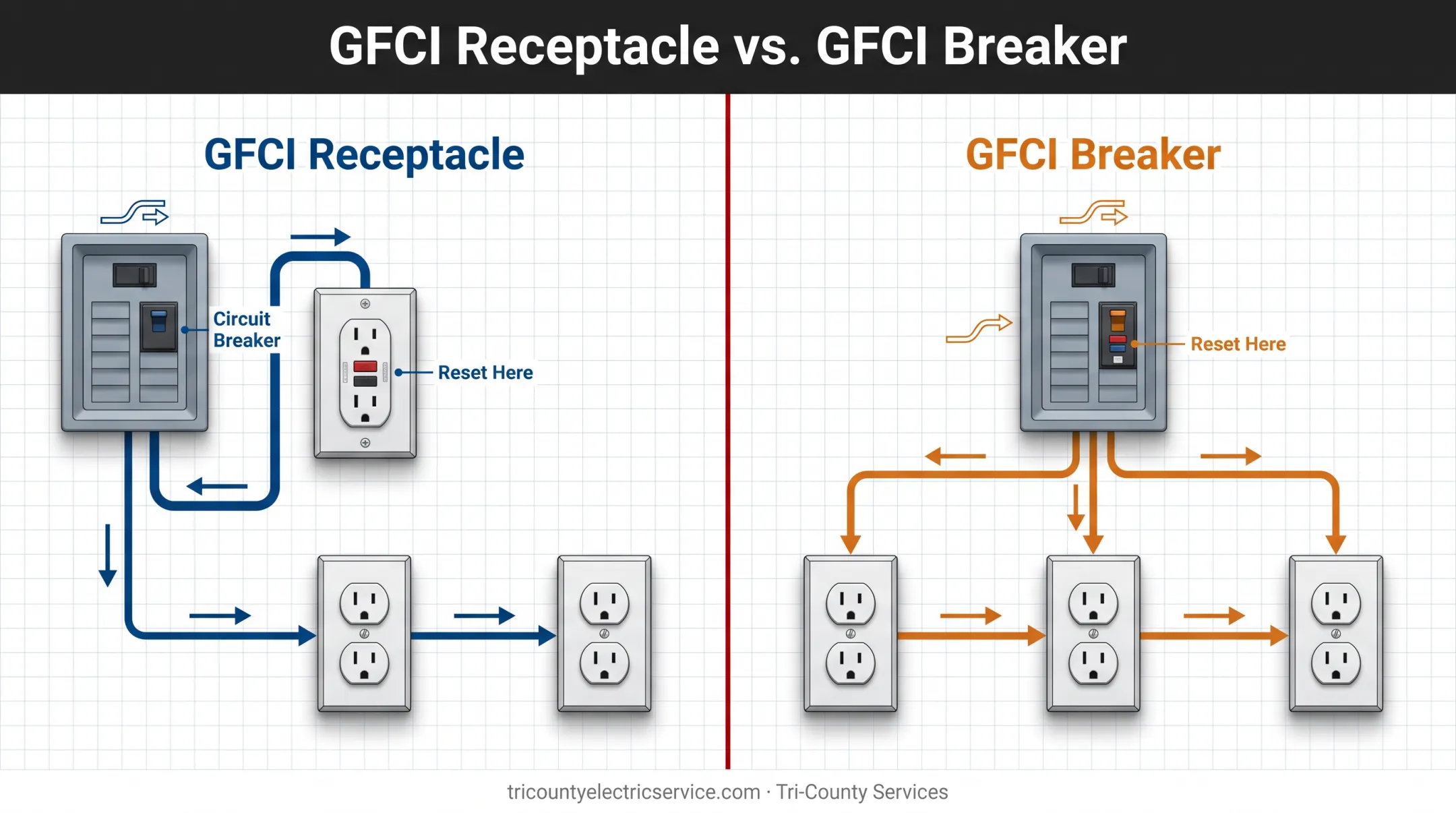

GFCI Installation Methods
Electricians typically choose between two approaches:
- GFCI receptacle: Installed as the first outlet on the circuit, protecting itself and downstream outlets. Easier to reset locally, but wiring order matters.
- GFCI breaker: Installed at the panel, protecting the entire circuit from the source. Convenient for whole-circuit coverage, though you'll need to reset it at the panel if it trips.
Narrow exceptions exist in the code. Review those with a licensed electrician for your specific layout.
GFCI protection is not the only receptacle rule in play. NEC 406.12 also requires tamper-resistant receptacles in dwelling unit locations covered by 210.52, bathrooms included.

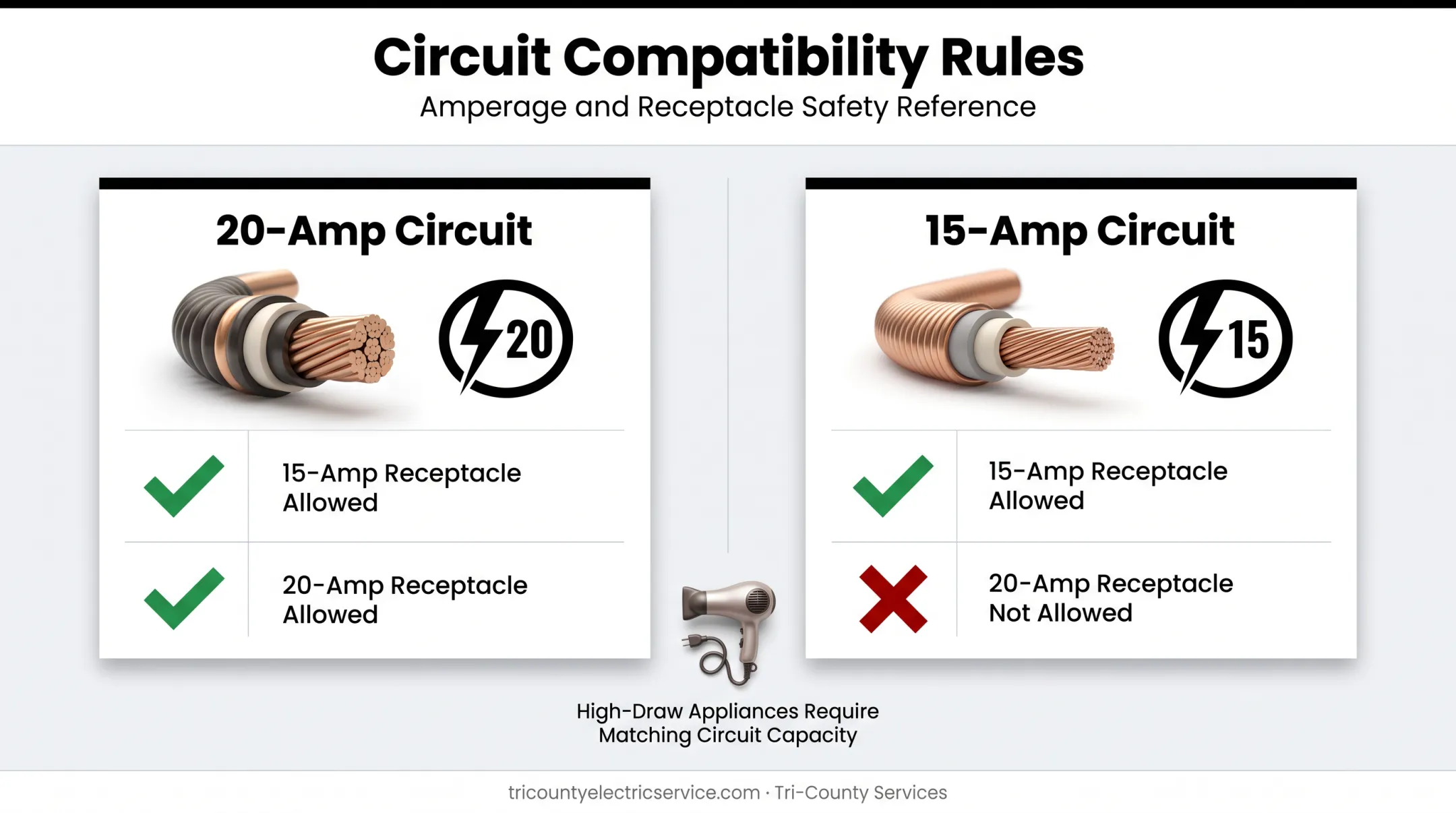

Does the Code Require 20-Amp Circuits, or Is 15-Amp Allowed?
NEC 210.11(C)(3) requires at least one 20-amp branch circuit dedicated to bathroom receptacles. A 15-amp circuit doesn't cut it.
Here's where it gets nuanced:
- A 15-amp receptacle can appear on a 20-amp multi-outlet circuit
- A 20-amp receptacle can never be installed on a 15-amp circuit
- If a single receptacle sits alone on an individual branch circuit, that receptacle must match or exceed the circuit's rating
Why 20 amps? Bathrooms run high-draw appliances—hair dryers, curling irons, straighteners—that pull heavy current in short bursts. A 15-amp circuit trips repeatedly under that load.
Common DIY mistake: Reusing leftover 15-amp wire or breakers from elsewhere in the house. Undersized wiring is easy for an inspector to spot and often fails inspection on the spot.
Is a Dedicated Circuit Required for Bathroom Outlets?
Not always. It depends on how many bathrooms the circuit serves—and what else shares that circuit.
Multi-bathroom circuits: A single 20-amp circuit can feed receptacle outlets in more than one bathroom when that circuit powers nothing else—no lighting, fans, or outlets in other rooms.
Single-bathroom exception: When a 20-amp circuit serves only one bathroom, NEC 210.23(A)(1) and (A)(2) also allow it to power that bathroom's lighting and fan. The exception ends at the bathroom door; it does not extend to other rooms.
For remodels, a dedicated circuit per bathroom is often the safer, clearer choice. It reduces ambiguity and gives future homeowners more flexibility.
Panel capacity is the practical constraint. Tri-County Electric Service can evaluate your panel's load distribution, breaker capacity, and grounding before you size a new dedicated circuit. That check flags overloaded circuits or aging infrastructure before they stall a remodel.
Where Should Electrical Outlets Be Placed in a Bathroom?
Two NEC placement rules control bathroom outlets: one keeps a receptacle within reach of the sink, and the other keeps receptacles out of the tub and shower zone.

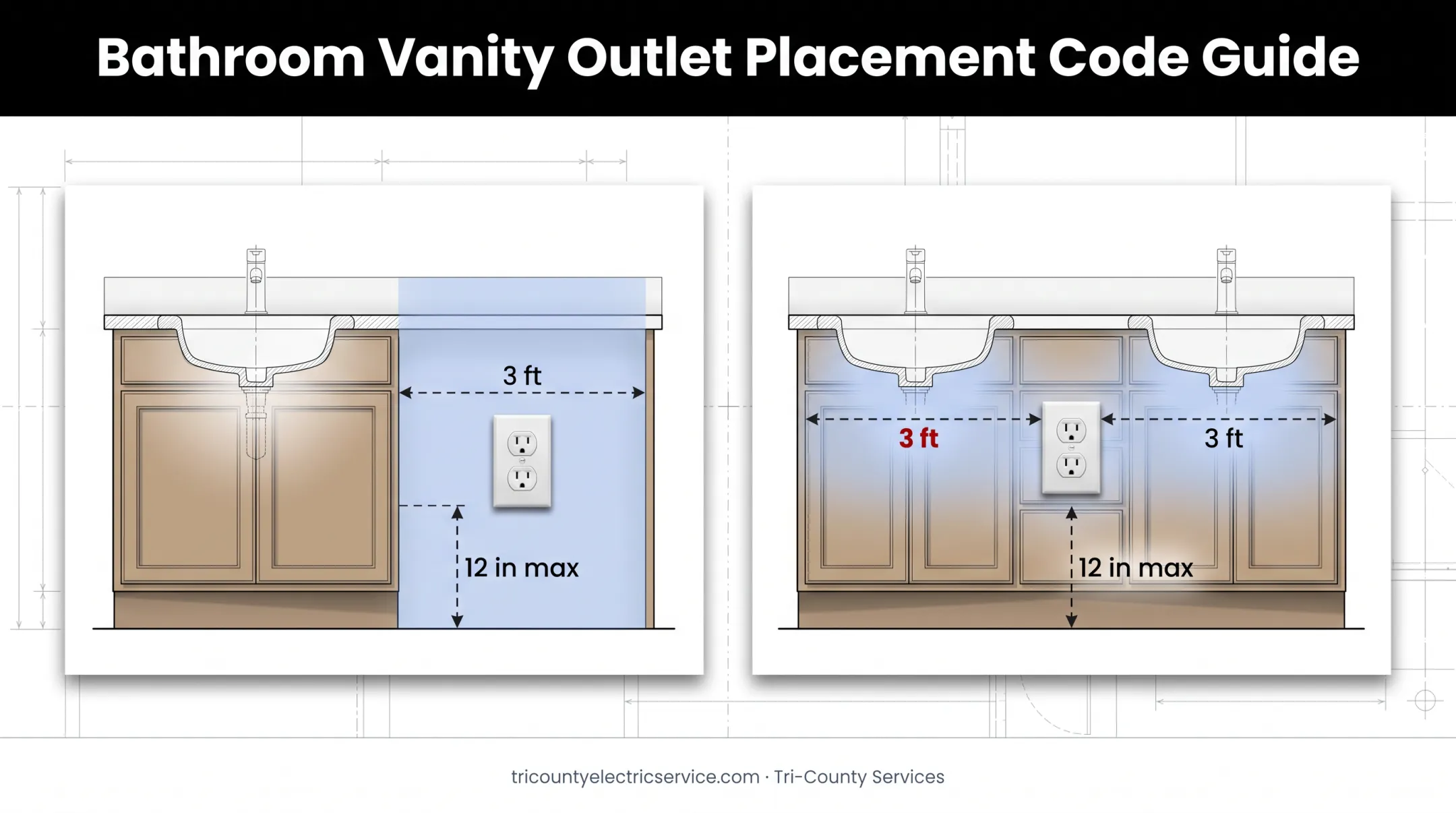

The 3-Foot Sink Rule
NEC 210.52(D) requires at least one receptacle within 3 feet of the outside edge of the sink basin. It can sit on the wall or partition next to the sink, on the countertop, or on the side of the sink cabinet.
Additional limits:
- Receptacles can't sit more than 12 inches below the top of the sink or countertop
- For double vanities, one outlet can serve both basins if it falls within 3 feet of each sink's outside edge

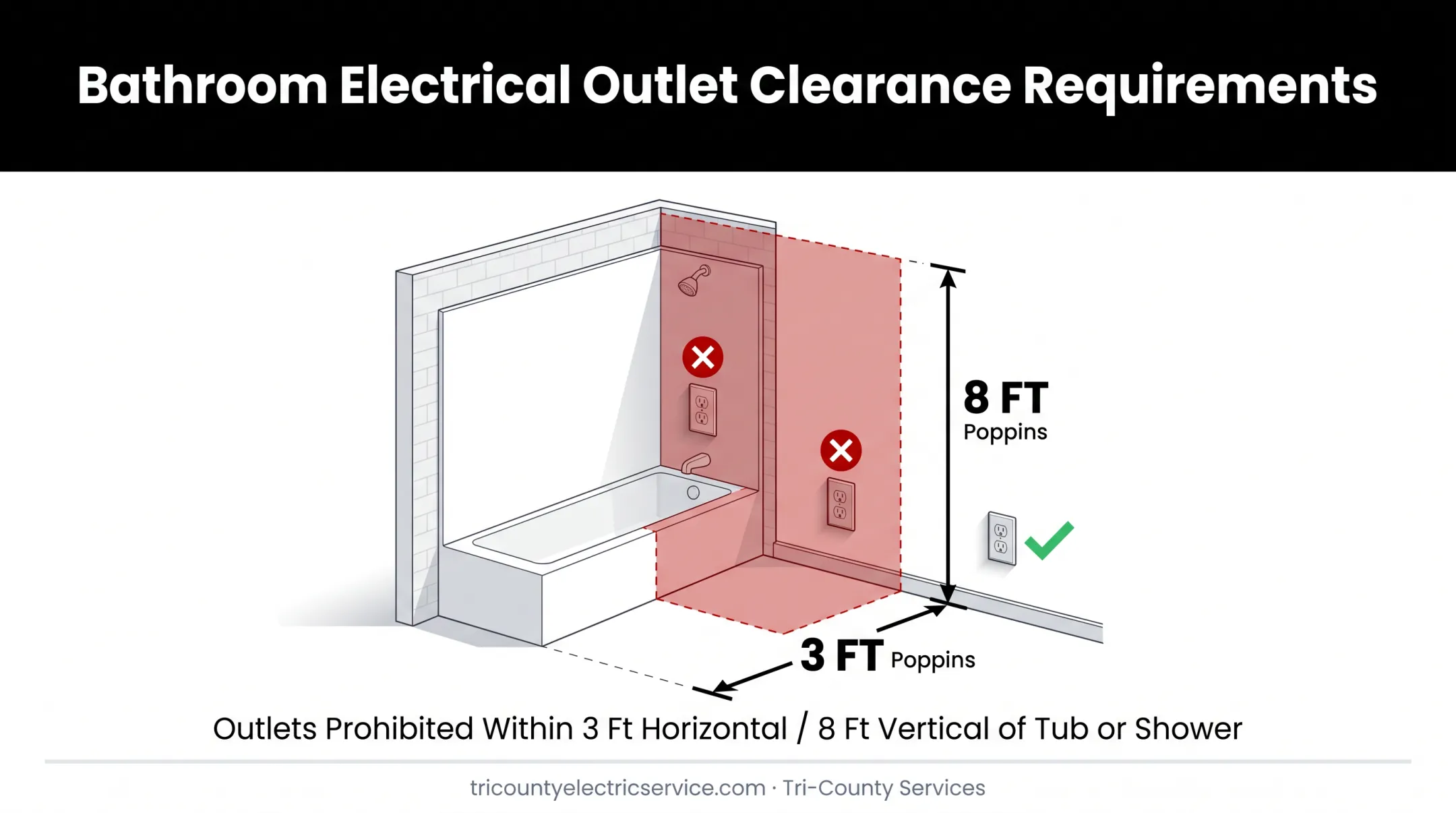

The Tub/Shower No-Outlet Zone
NEC 406.9(C) prohibits receptacles within a zone measured 3 feet horizontally and 8 feet vertically from the top of the tub rim or shower threshold.
- Narrow exception: In small bathrooms with no other usable wall space, a receptacle may be installed on the wall opposite the tub or shower
What Is the 2-6-12 Rule for Bathroom Outlets?
Electricians often use "2-6-12" as a memory aid, not because it's a direct NEC citation, but because it bundles related clearance numbers into something easy to recall on a job site:
- 2 feet: Minimum clearance from water sources for certain fixtures
- 6 feet: Horizontal clearance often used near tub and shower edges
- 12 inches: Maximum distance an outlet can sit below a sink countertop's top edge
Important: This mnemonic simplifies the code; it doesn't replace it. The actual enforceable rules are NEC 210.52(D) for sink placement and NEC 406.9(C) for tub/shower exclusion zones. If you hear "2-6-12" from a contractor, treat it as shorthand—then verify the real numbers against the code text.
Having a licensed electrician confirm exact measurements during the rough-in inspection, before drywall goes up, saves you from costly rework later.
Frequently Asked Questions
What are the electrical code requirements for bathroom outlets?
Bathroom outlets need GFCI protection, a 20-amp circuit, and at least one receptacle within 3 feet of the sink basin. Tub and shower areas have strict no-outlet zones.
Does the electrical code require GFCI protection for bathroom outlets?
Yes. NEC 210.8(A)(1) requires GFCI protection for bathroom receptacles. That protection can come from a GFCI receptacle or a GFCI breaker at the panel.
Does the electrical code require 20-amp circuits for bathroom outlets, or is 15-amp allowed?
A 20-amp circuit is the minimum requirement. A 20-amp receptacle can never go on a 15-amp circuit, though a 15-amp receptacle can sit on a shared 20-amp circuit.
Does the electrical code require bathroom outlets to be on a dedicated circuit?
One 20-amp circuit can serve receptacle outlets in more than one bathroom if nothing else is on that circuit. It can also serve a single bathroom’s receptacles, lighting, and fan together. Separate circuits per bathroom are still the safer bet on remodels.
Where should electrical outlets be placed in a bathroom?
At least one outlet must be within 3 feet of the sink's outside edge. Outlets are banned within 3 feet horizontally and 8 feet vertically of tub and shower rims.
What is the 2-6-12 rule for bathroom outlets?
It’s an informal shorthand some electricians use for common bathroom clearance distances—not an official NEC section. For enforceable rules, check 210.52(D) and 406.9(C).
