Swimming pool electrical work falls under NEC Article 680, and Northeast Ohio homeowners also need to satisfy local inspection requirements before the water goes in. This guide covers voltage requirements, GFCI protection, bonding and grounding rules, breaker sizing, clearance distances, and the differences between above-ground and in-ground setups.
Key Takeaways
- Every pool electrical circuit needs GFCI protection under NEC Article 680
- Pool pumps run on either 120V or 240V, depending on size and horsepower
- Bonding and grounding are two separate, equally required safety measures
- Outlets and equipment must meet code-required clearances from the water's edge
- Pool electrical work requires a licensed electrician for code compliance and safety
What Electrical Is Required for a Swimming Pool?

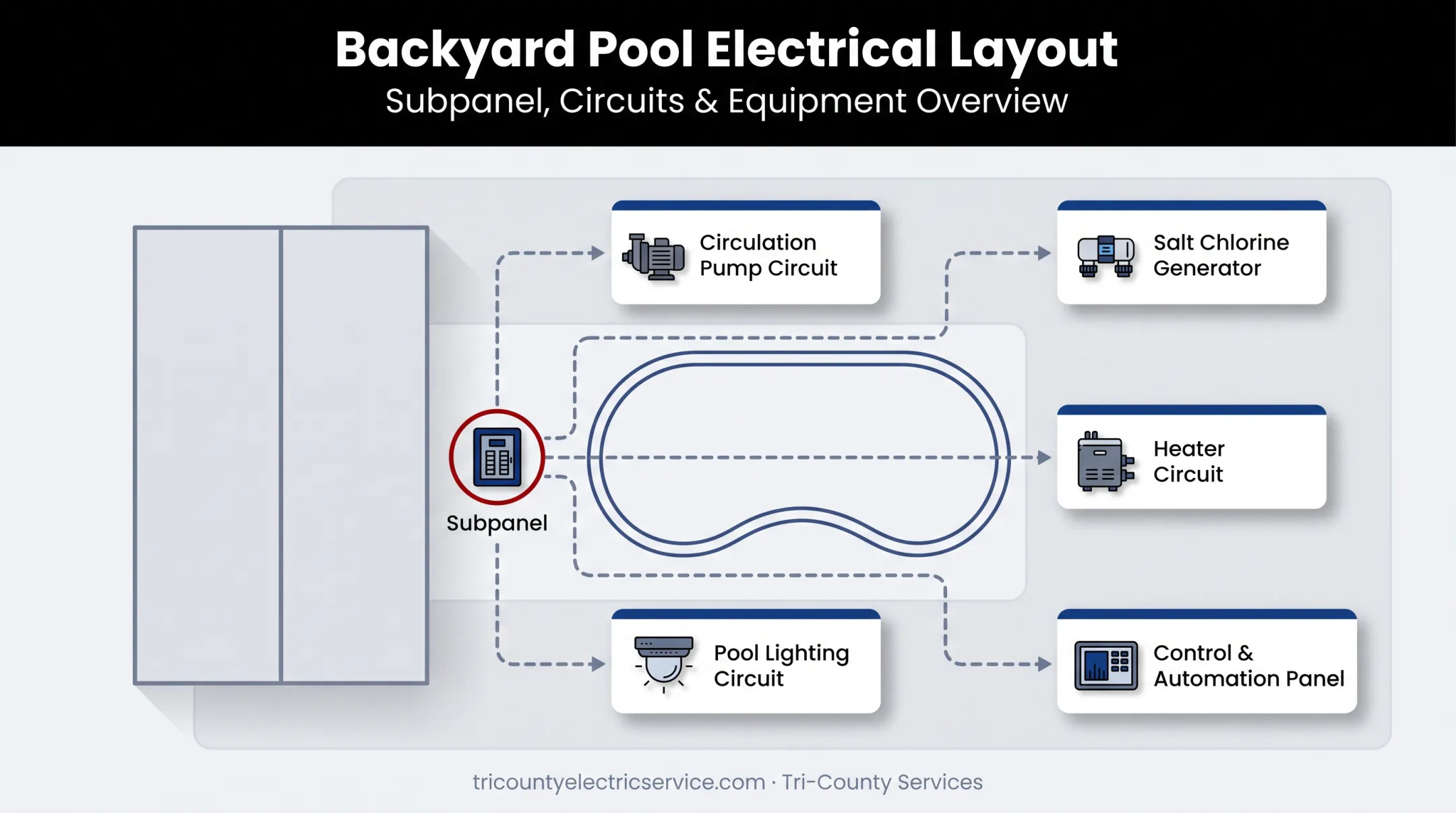

A typical pool electrical system includes several distinct components:
- Circulation and filtration pump
- Heater (electric, or gas with electronic ignition)
- Pool lighting
- Automatic covers
- Salt chlorine generators
- Control and automation panels
Those loads need proper branch circuits and overcurrent protection. Many installers wire a dedicated subpanel near the pool to isolate them from the main house panel and simplify future service work. This isn't universally required, but it's common on larger installations.
GFCI Protection Is Non-Negotiable
Every pool-related circuit needs GFCI protection under NEC Article 680, including hardwired equipment like pumps and heaters. The NFPA's summary of the NEC confirms this covers all outlets serving pool motors, including replacement pump motors — not just the original installation.
Article 680 also requires equipotential bonding of metal pool components so stray voltage stays equalized and shock risk around the water stays low.
Conduit and Location Considerations
Buried electrical lines must run through conduit rated for wet, outdoor locations, with weatherproof junction boxes at every connection point. Equipment placed closer to the house needs less trenching, which directly affects project scope and cost.
A word of caution for older pools: Pools built before major NEC updates in the 1970s may not meet current bonding and grounding standards. Any upgrade is a good time to have a licensed electrician evaluate the entire system.
Do Swimming Pools Require 110V or 220V Power?
The answer depends almost entirely on pump size and type.
- Standard in-ground pumps typically need a dedicated 240V circuit for full power and efficiency
- Smaller and above-ground pumps often run on a dedicated 120V, 20-amp circuit
- Some pumps are dual-voltage and can be wired either way per the manufacturer’s terminal diagram
Manufacturer data backs this up directly. Hayward's Super Pump line offers both 115V and 230V configurations across models from 1/2 HP to 2 HP. Pentair's IntelliFlo3 lists a 1.5 HP model at 115/208-230V, while its 3 HP model runs exclusively on 208-230V.
Check the nameplate before you plan the circuit. Don't assume voltage from horsepower alone; the exact model and manufacturer specs decide it.
Pool heat pumps and larger heaters are a separate load. They need their own dedicated circuit, often in the 30–50 amp range, kept apart from the pump.

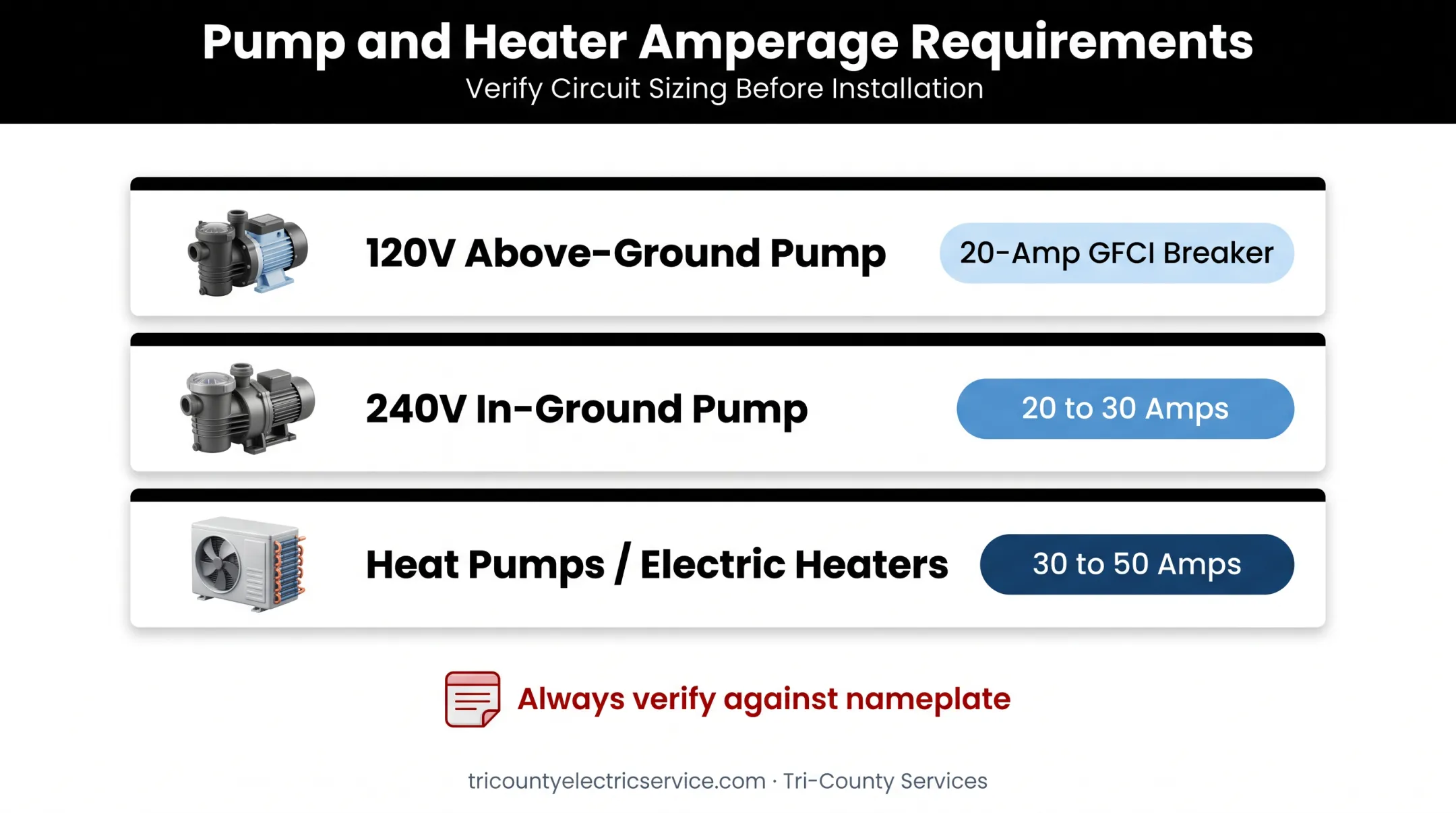

What Size Circuit Breaker Is Needed for a Swimming Pool?
Breaker sizing isn't something to guess at. Typical sizes by equipment:
| Equipment Type | Typical Breaker Size |
|---|---|
| 120V above-ground pump | 20-amp GFCI breaker |
| 240V in-ground pump | 20-30 amps (varies by load) |
| Heat pumps/electric heaters | 30-50 amps |
Pentair installation data shows why generic charts fall apart fast. A 1.5 HP pump draws about 12 amps at 115V, but only 5.9-6.4 amps at 208-230V. A 3 HP model on that higher voltage pulls roughly 11.2-12.4 amps. Draw still changes by model, voltage, and manufacturer.
Always confirm breaker size against the equipment nameplate amperage and NEC calculations. Never assume. Undersized breakers create fire risk; oversized breakers may not protect the equipment. Have a licensed electrician size and install the circuit.
How Far From a Pool Can an Electrical Outlet Be Located?
Pool electrical outlets must stay a set distance from the water so energized equipment stays clear of swimmers.
- GFCI receptacles: Minimum 6 feet from the water's edge, per NFPA consumer guidance
- Lighting fixtures: Typically 5-10 feet above the waterline, depending on fixture type
- Control panels and transformers: At least 5 feet away, housed in weatherproof, lockable enclosures

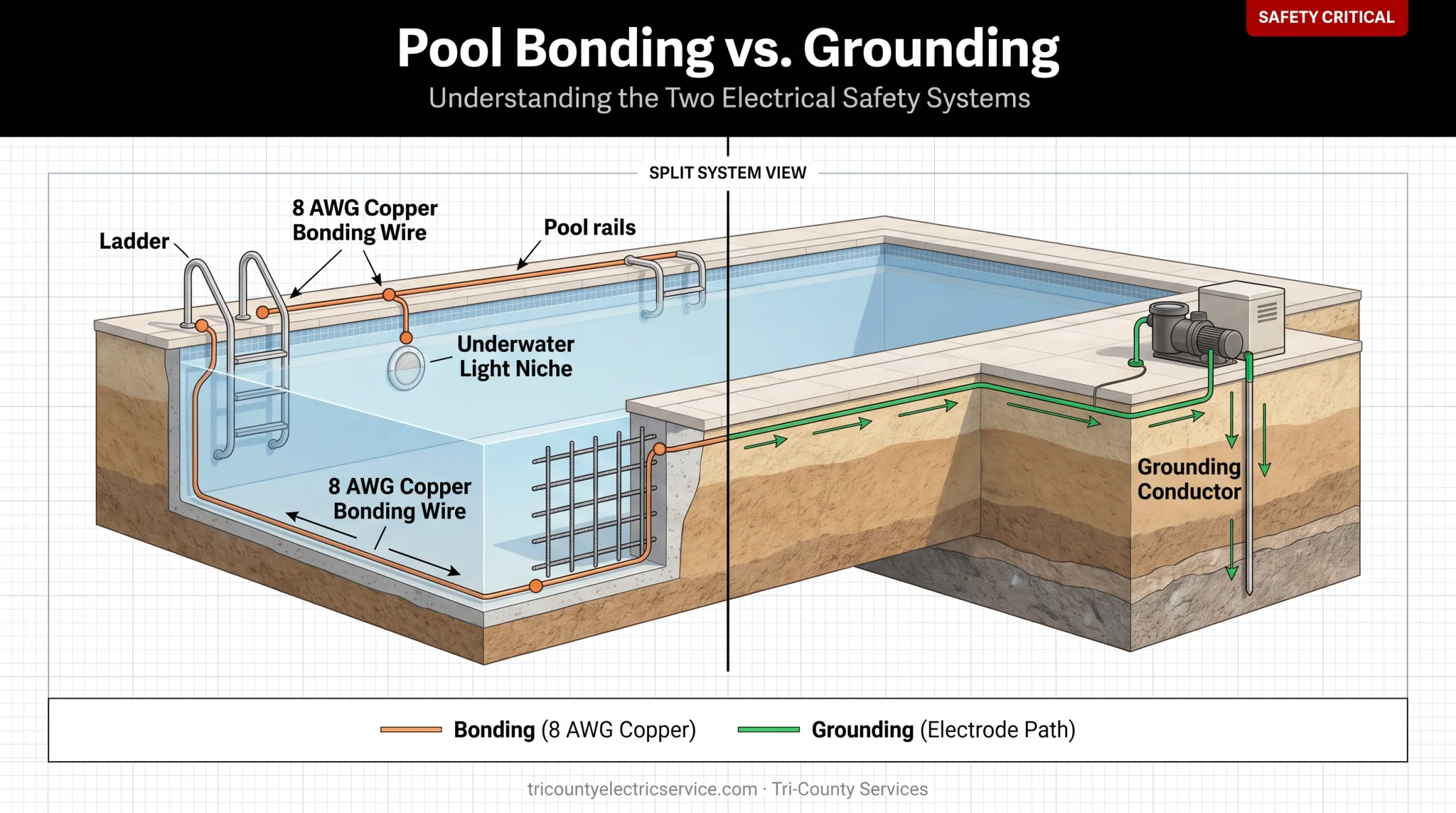

Bonding vs. Grounding: Two Different Jobs
Clearances control how close equipment can sit to the water. Bonding and grounding handle a different risk: voltage differences that can shock anyone in or near the pool. These terms get mixed up constantly, but they do different jobs:
- Bonding: Ties metal parts (ladders, rails, light niches, pump housing, reinforcing steel) together with 8 AWG solid copper so every component stays at the same potential
- Grounding: Paths stray current safely into the earth through a grounding electrode
NFPA equipotential bonding guidance covers the pool shell, perimeter surfaces, metal fittings such as ladder cups, and the pool water itself. Tying those elements together eliminates dangerous potential differences.
Ohio building departments may add clearance or bonding requirements on top of the baseline NEC rules. Pulling a permit and going through inspection review catches these details before they become a failed inspection later.
Above-Ground Pool Electrical Requirements and Grounding
Above-ground pools get treated as an afterthought sometimes, but the NEC doesn't treat them that way.
Typical setup requirements:
- Dedicated 20-amp, 120V GFCI-protected circuit
- 12-gauge wire run through approved conduit
- Grounding and bonding of all metal components
Above-ground pools need grounding and bonding too. That surprises a lot of homeowners who assume the simpler setup skips this step. It doesn't.

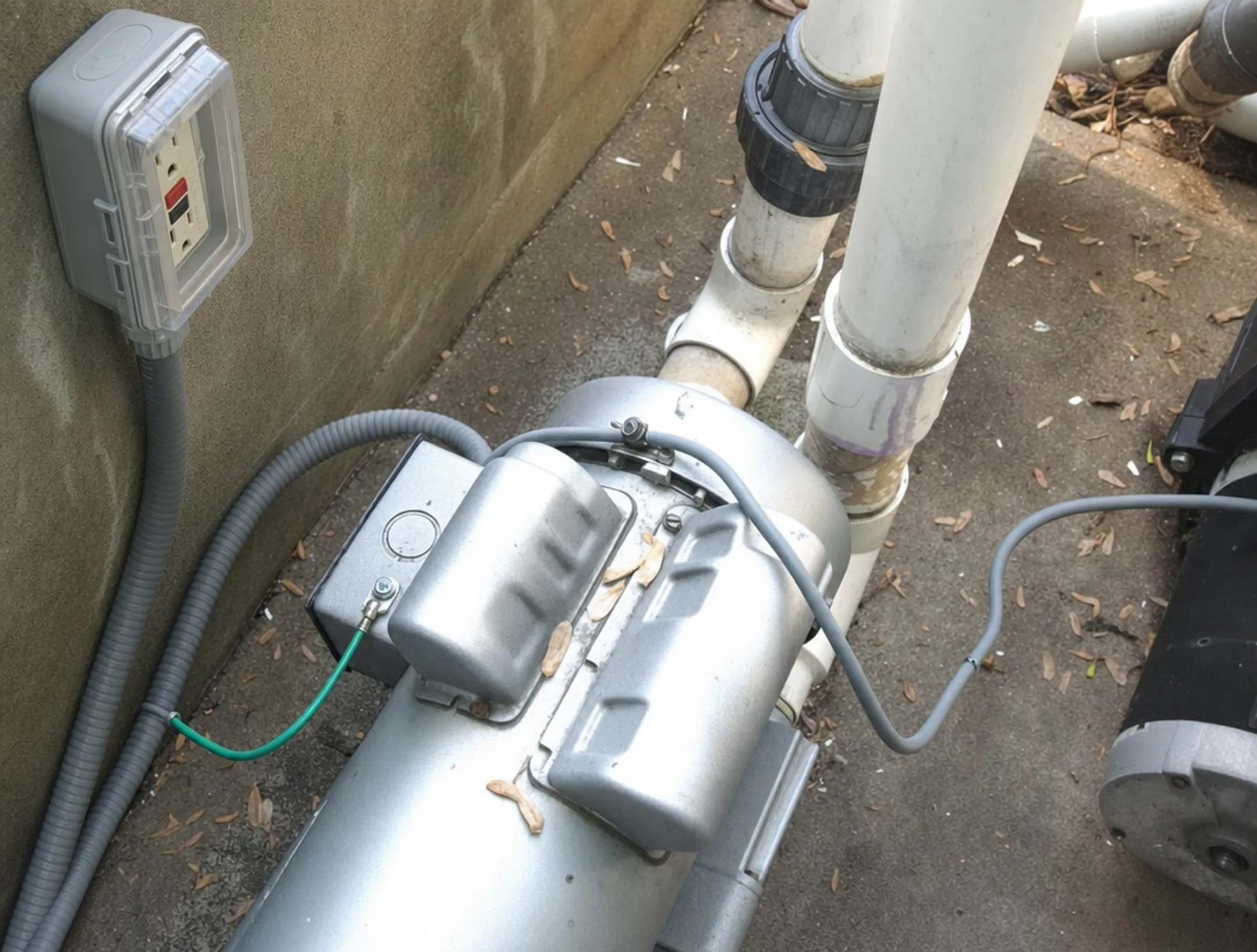

Pentair's installation guides instruct installers to permanently ground the pump motor and bond it to the pool structure with a solid No. 8 AWG copper conductor — the same standard used for in-ground systems.
The outlet powering an above-ground pump should sit close enough to avoid an extension cord. A cord-powered pool pump is a code violation in most jurisdictions and creates a serious shock risk.
Cost Considerations for Pool Electrical Wiring
Pool electrical costs vary widely based on project scope. Angi's national data pegs above-ground pool electrical installation between $300 and $5,000, with distance from the house driving much of that range. Trenching runs roughly $8 per linear foot, while wire and protective conduit add another $12-$17 per linear foot.
Factors that push costs higher:
- Equipment located away from the house, requiring longer trenching runs
- An existing panel without enough capacity, potentially requiring a subpanel or full service upgrade
- Additional equipment like heaters, salt chlorine systems, or automatic covers
- Bonding and grounding scope, especially on older pools being brought up to code
These figures are general planning benchmarks, not fixed quotes. Actual pricing depends on your property, panel condition, and equipment list. A written estimate from a licensed local electrician is the only way to know real numbers for your home.
Tri-County Electric Service offers free estimates and upfront pricing, so Northeast Ohio homeowners aren't left guessing on pool wiring costs.
Why Work With a Licensed Electrician for Pool Wiring
Pool wiring mistakes carry real consequences beyond a failed inspection. Improper bonding or missing GFCI protection creates genuine electrocution risk, and code violations can complicate insurance coverage down the road.
Tri-County Electric Service has served Northeast Ohio since 1975 — nearly 50 years of local electrical work. The team is fully licensed and familiar with NEC Article 680 requirements alongside local inspection standards across the region.
Beyond pool wiring, Tri-County offers:
- Panel upgrades and subpanel installations for added pool equipment loads
- Free estimates with upfront pricing
- Flexible scheduling across Northeast Ohio, Southwestern Ohio, and Northern Kentucky
For a project involving water and electricity in the same backyard, experience and code familiarity matter more than convenience alone.
Frequently Asked Questions
How much does it cost to install electrical wiring for a swimming pool?
Costs vary by region and project scope, generally covering permits, wiring, bonding, and inspection. Trenching distance, subpanel needs, and extra equipment can add significantly to the total. A free estimate from a licensed electrician gives you an accurate number for your property.
What electrical is required for a swimming pool?
Pool electrical systems need GFCI protection, bonding, grounding, and dedicated circuits for the pump, lighting, and heater equipment, all per NEC Article 680. Larger installations often add a dedicated subpanel to manage the load.
Do swimming pools require 110V or 220V power?
It depends on pump size. Smaller and above-ground pumps often run on 120V, while larger in-ground pumps typically need a dedicated 240V circuit. Always check the manufacturer's nameplate to confirm.
What size circuit breaker is needed for a swimming pool?
Breaker size depends on the specific equipment's amperage draw, commonly 20-30 amps for pumps and up to 50 amps for heat pumps. Match the breaker to the nameplate rating, not a general assumption.
How far away from a swimming pool can an electrical outlet be located?
NEC requires GFCI receptacles to sit at least 6 feet from the water's edge. Lighting and equipment have their own clearance rules, typically 5-10 feet depending on the fixture.
Do all above-ground pools need to be grounded?
Yes. Above-ground pools require the same grounding and bonding of metal components as in-ground pools, regardless of their simpler setup. This is a common misconception, but the code doesn't make an exception.
